Shown: Emtek Brisbane Lever by Lever Mortise Entry Set in US26 Finish Outside View

Brisbane Mortise Lock

Finishes (6)
Select one
Knob and Lever (61)
Select one
Find a Dealer
  • Can be ordered with any Brass Knob, Crystal & Porcelain or Lever
  • Sold as complete set. Includes Latch and Strike Plate
  • For pricing information, contact any EMTEK® dealer

Available Functions

  • F13 Mortise
  • Dummy
  • F20 Mortise
  • 2-1/2" or 2-3/4" Backsets
  • Standard Mortise Door Prep ANSI A115.1
  • UL Listed Mortise with ANSI F20 or F13 Function
  • Schlage C Keyway
  • Handing required for All Mortise Locks

Specifications

    Finishes
    Knob and Lever
    Functions

    Modern.Chic.Svelte

    With a slender 1 ¾" wide trim, the monolithic Brisbane and the full-length Adelaide entrance handlesets offer a chic and contemporary look with the performance, quality, and security of a mortise lock. Also included in this series:

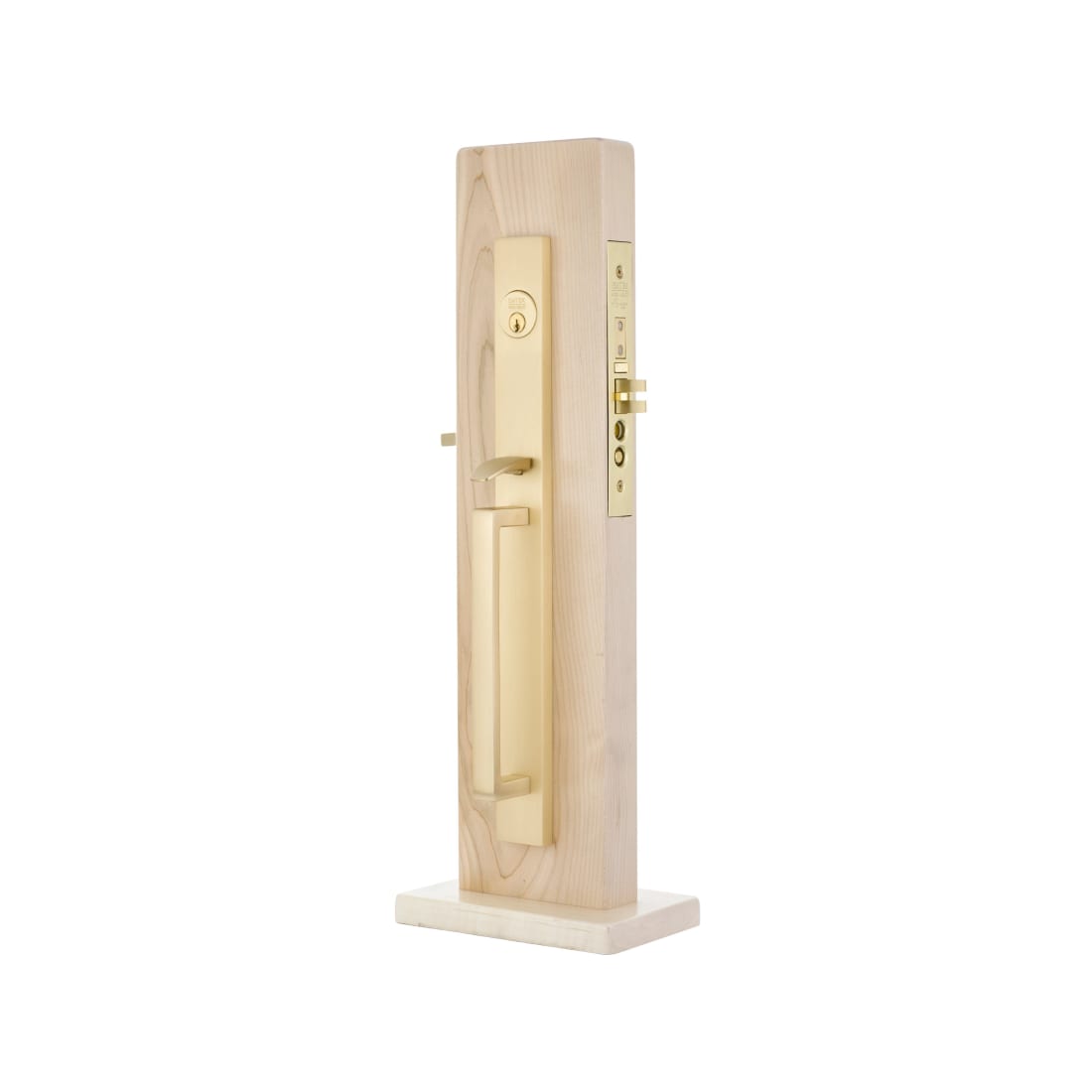

    • Adelaide Full-Length Mortise Entry Set
    • Brisbane Monolithic Mortise Entry Set
    • Brisbane Lever by Lever/Knob by Knob Mortise Entry Set
    • Brisbane 8" Door Pull

    MORTISE ENTRY SETS

    Emtek’s heavy duty mortise lock boxes include:

    • UL Listed mortise door prep ANSI A115.1
    • 180 minute fire rating
    • Deadlocking latch bolt
    • Forged deadbolts with anti-saw inserts
    • Anti-pick security latches
    • Anti-friction triggers
    • Stop and release buttons in the F20 function option
    • Function (F13 or F20), backset length and handing are required on all mortise lock orders

    Mortise Functions Explained

    ANSI F20 UL LISTED

    • Heavy duty lock body
    • Always Locked from the outside
    • Includes a Stop button and a Release button on the faceplate.
    • F20 has a mechanism to temporarily override the outside lock. This is activated by pressing the release button. To cancel, use the stop button or project the deadbolt

    ANSI F13 UL LISTED

    • Heavy duty lock body
    • Operates as a standard keyed lock
    • Does not include a stop or release button
