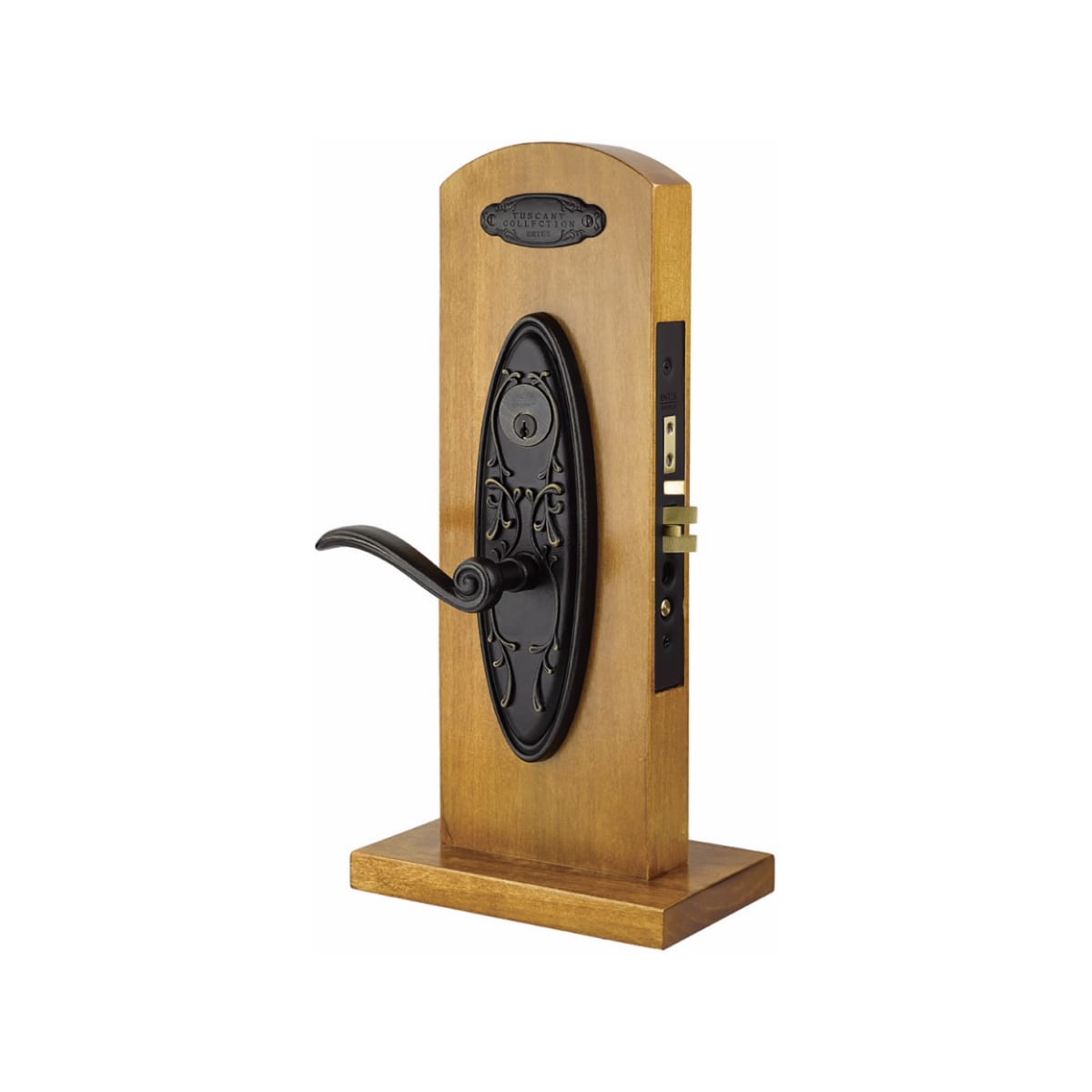

Da Vinci Mortise Lock

Finishes (2)

Knob and Lever (7)

Find a Dealer

Can be ordered with any Tuscany Bronze Knob, Crystal & Porcelain or Lever
Sold as complete set. Includes Latch and Strike Plate
For pricing information, contact any EMTEK® dealer

Available Functions

F13 Mortise
Dummy
F20 Mortise

2-1/2" or 2-3/4" Backsets
Standard Mortise Door Prep ANSI A115.1
UL Listed Mortise with ANSI F20 or F13 Function
Schlage C Keyway
Handing required for All Mortise Locks

Specifications

Product Name:

Da Vinci Mortise Lock

Product Code:

Select more options to get a product code.

Number of results: 5
F13353150OCKLHFB
F13353150OCKLHMB
F13353150OCKRHFB
F13353150OCKRHMB
F13353150PALHFB

MORTISE ENTRY SETS

Emtek’s heavy duty mortise lock boxes include:

UL Listed mortise door prep ANSI A115.1
180 minute fire rating
Deadlocking latch bolt
Forged deadbolts with anti-saw inserts
Anti-pick security latches
Anti-friction triggers
Stop and release buttons in the F20 function option
Function (F13 or F20), backset length and handing are required on all mortise lock orders

EUROPEAN TRADITIONS

Capture your own piece of the Italian countryside with Tuscany Bronze-inspired, Lost Wax designs!

Rooted in an ancient practice in which a bronze sculpture is cast from a wax model. The wax model is dipped in a slurry of silica, then more ceramic material is added, creating thick walls around the template.

At this point, the wax is melted out of the ceramic and you are left with an empty ceramic mold. Molten bronze is then poured into the ceramic mold, creating a bronze reproduction of the original wax model.
