F13 Mortise
Mortise Dummy
F20 Mortise

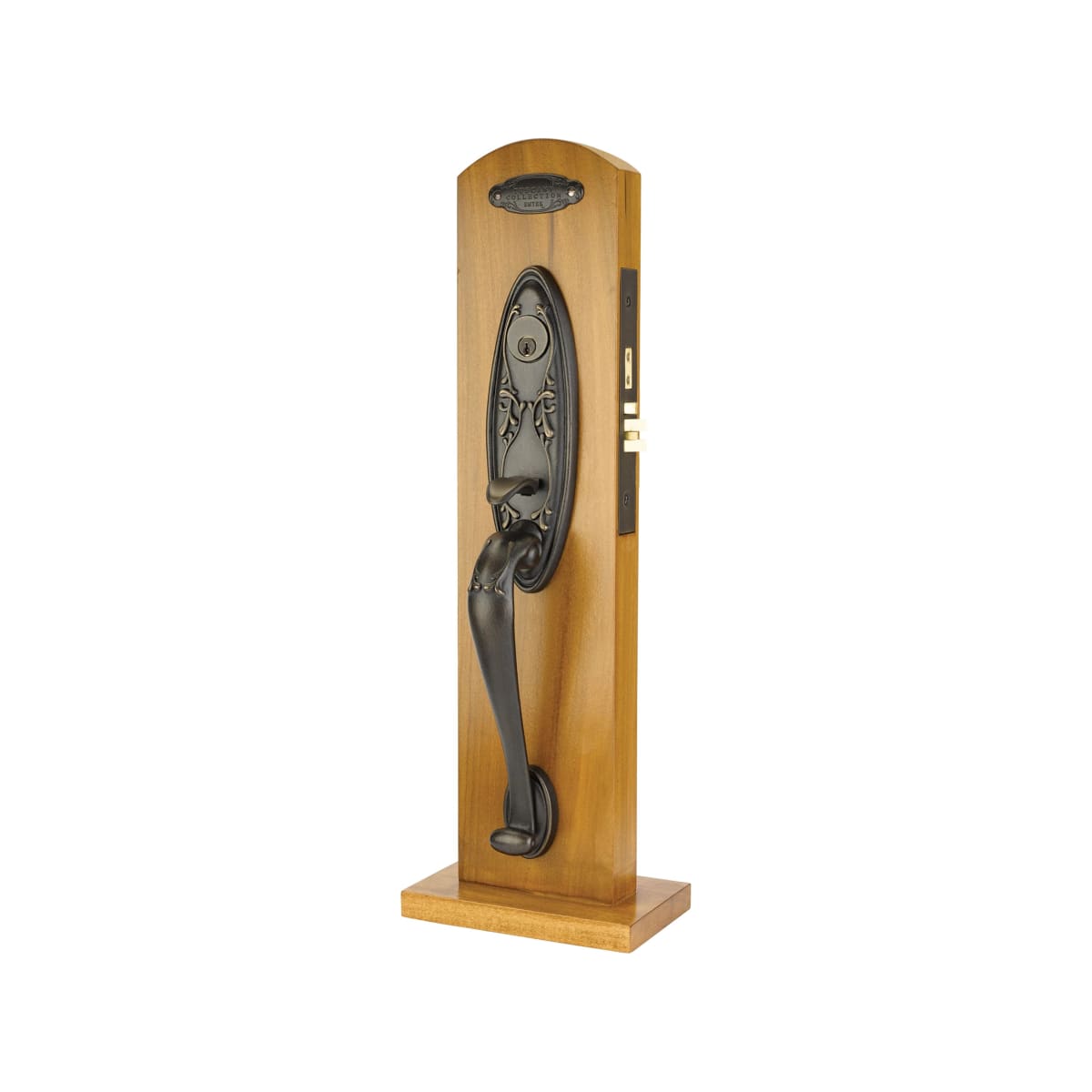

Shown: Emtek DaVinic Monolithic Mortise Entry Set in MB Finish Outside View

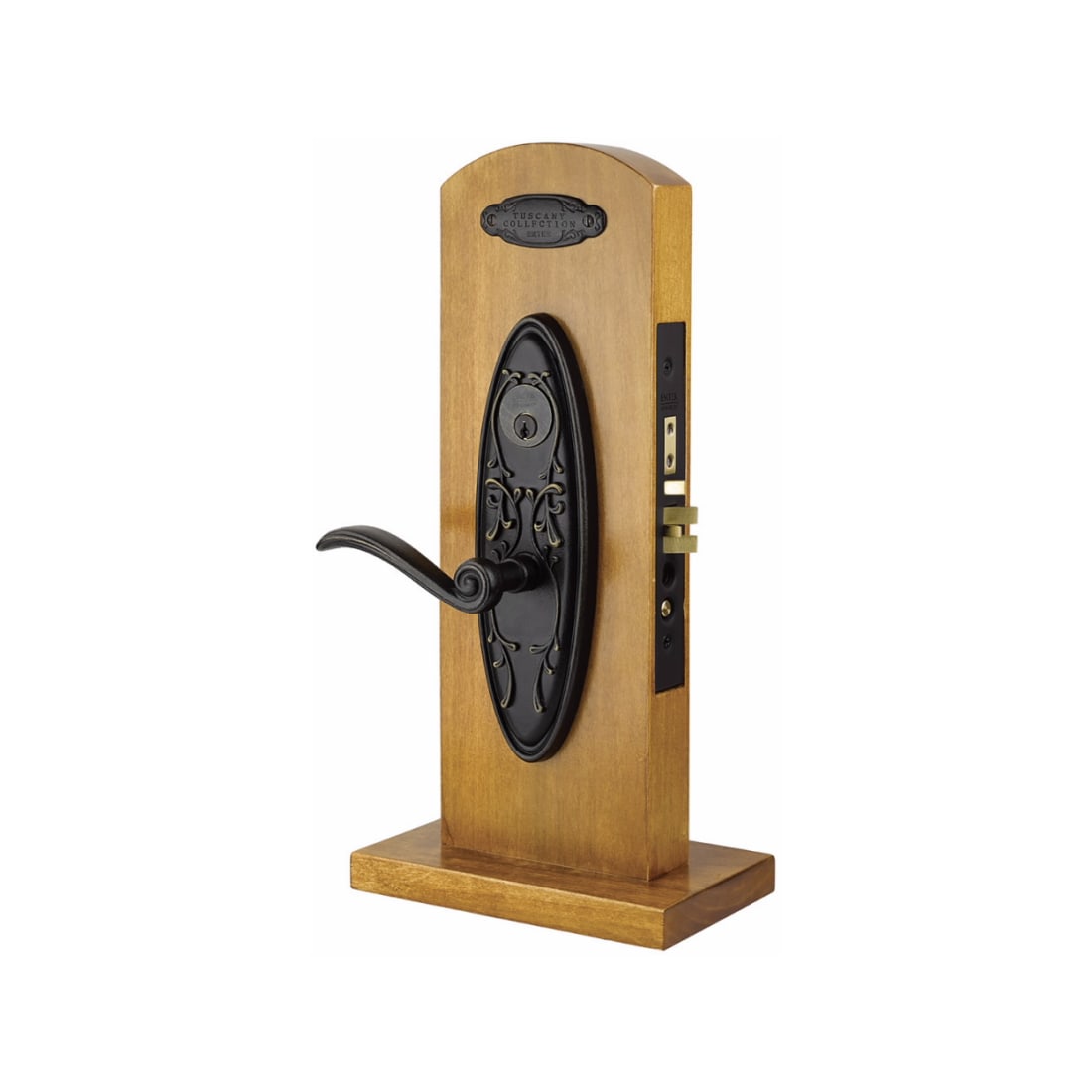

Da Vinci Mortise Entry Set
Finishes (2)
Knob and Lever (7)
- Can be ordered with any Lost Wax Cast Bronze knob or lever for the inside trim
- Sold as complete set. Includes latch and strike plate
- For pricing information, contact any EMTEK® dealer
Available Functions
- F13 Mortise
- Mortise Dummy
- F20 Mortise
- 2-1/2" or 2-3/4" backsets
- Standard mortise door prep ANSI A115.1
- UL Listed mortise with ANSI F20 or F13 function
- Schlage C keyway
- Handing required for all mortise locks
Specifications
- Mortise-Entry-Sets_EM_Specs.pdf
- EMTEK Dimensions-Door Thickness Specifications for Mortise Locksets
- EMTEK Active Mortise Lock Hole Preparation (Left Hand)
- UL Grip by Lever, Grip by Knob Active Mortise Lock Technical Specifications (Right Hand)
- Mortise-Entry-Sets_EM_Instructions.pdf
- EMTEK Dummy Mortise Lock Door Prep - Right Hand
- EMTEK Dummy Mortise Lock Door Prep - Left Hand
- EMTEK Cylinder, Face Plate, Strike Plate, Understrike Plate and Dust Box Dimensions
- Rustic-Modern-Rectangular_EM_Instructions4.png
- Rustic-Modern-Rectangular_EM_Instructions3.png
MORTISE ENTRY SETS
Emtek’s heavy duty mortise lock boxes include:
- UL Listed mortise door prep ANSI A115.1
- 180 minute fire rating
- Deadlocking latch bolt
- Forged deadbolts with anti-saw inserts
- Anti-pick security latches
- Anti-friction triggers
- Stop and release buttons in the F20 function option
- Function (F13 or F20), backset length and handing are required on all mortise lock orders
EUROPEAN TRADITIONS
Capture your own piece of the Italian countryside with Tuscany Bronze-inspired, Lost Wax designs!
Rooted in an ancient practice in which a bronze sculpture is cast from a wax model. The wax model is dipped in a slurry of silica, then more ceramic material is added, creating thick walls around the template.
At this point, the wax is melted out of the ceramic and you are left with an empty ceramic mold. Molten bronze is then poured into the ceramic mold, creating a bronze reproduction of the original wax model.
